PhyTA Server¶
The PhyTA Server is the business layer of PhyTA. It provides a way to compare phylogenetic trees using several metrics and returning the results in JSON.
Command Line¶
We offer a simple command line interface that is available on node.js or in the github, that allows the user to process trees with the metrics and parsers available, returning the results in JSON file.
Options:
-h, --helpShows the usage information.-V, --versionShows the CLI version number.-l. --path <path>Path to folder with files to be processed.-f, --trees <fileName>File name with the trees to be processed.-t, --types <fileName>File name with tree types.-m, --metrics <fileName>File name with metrics.-p, --parser <parser>Parser to be used on the trees.-o, --output <fileName>Name of the result files.
All command options are required, if any one of them is missing an exception will be thrown.

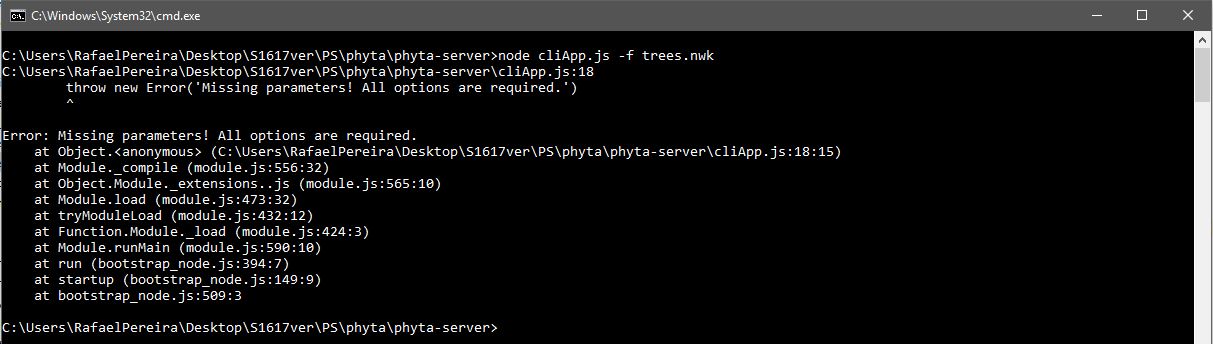

Figure 1.2: Error representation in console.
Usage example:
In order to run PhytA from command line you must specify, the metrics that will be used, the trees and their types. Each one in a different file.
All the metrics, trees and tree types are separated by $character.
Tree file:
trees.txt
(A,B,(C,D)E)F;$(A,B,(C,D)E)F;
Tree types file:
types.txt
rooted$rooted
Metrics file:
metrics.txt
robinsonFoulds$robinsonFouldsLength
Using the files specified above, we can run CLI using those commands:
If cloned from github repository:
node cliApp.js –path C:/phyta/ –trees trees.txt –types types.txt –metrics metrics.txt –parser newick –output results
If you installed the module globally from npm:
phyta-cli –path C:/phyta/ –trees trees.txt –types types.txt –metrics metrics.txt –parser newick –output results
Results:
The next code block shows us an example of the comparing results that each tree got with each other in the JSON output file.
{
"trees": [
{
"id": 0,
"format": "(A,B,(C,D)E)F;",
"type": "rooted",
"tree": {
"elements": [
{
"id": 0,
"parent": null,
"children": [
1,
2,
3
]
},
{
"id": 1,
"parent": 0,
"children": []
},
{
"id": 2,
"parent": 0,
"children": []
},
{
"id": 3,
"parent": 0,
"children": [
4,
5
]
},
{
"id": 4,
"parent": 3,
"children": []
},
{
"id": 5,
"parent": 3,
"children": []
}
],
"info": {
"0": {
"data": "F",
"length": 0
},
"1": {
"data": "A",
"length": 0
},
"2": {
"data": "B",
"length": 0
},
"3": {
"data": "E",
"length": 0
},
"4": {
"data": "C",
"length": 0
},
"5": {
"data": "D",
"length": 0
}
},
"clusters": {
"clusters": {
"length": 6,
"items": {
"0": [
1,
2,
4,
5
],
"1": [
1
],
"2": [
2
],
"3": [
4,
5
],
"4": [
4
],
"5": [
5
]
}
},
"ids": [
1,
0,
2,
4,
3,
5
]
}
}
},
{
"id": 1,
"format": "(A,B,(C,D)E)F;",
"type": "rooted",
"tree": {
"elements": [
{
"id": 6,
"parent": null,
"children": [
7,
8,
9
]
},
{
"id": 7,
"parent": 6,
"children": []
},
{
"id": 8,
"parent": 6,
"children": []
},
{
"id": 9,
"parent": 6,
"children": [
10,
11
]
},
{
"id": 10,
"parent": 9,
"children": []
},
{
"id": 11,
"parent": 9,
"children": []
}
],
"info": {
"6": {
"data": "F",
"length": 0
},
"7": {
"data": "A",
"length": 0
},
"8": {
"data": "B",
"length": 0
},
"9": {
"data": "E",
"length": 0
},
"10": {
"data": "C",
"length": 0
},
"11": {
"data": "D",
"length": 0
}
},
"clusters": {
"clusters": {
"length": 6,
"items": {
"6": [
7,
8,
10,
11
],
"7": [
7
],
"8": [
8
],
"9": [
10,
11
],
"10": [
10
],
"11": [
11
]
}
},
"ids": [
7,
6,
8,
10,
9,
11
]
}
}
}
],
"matrix": [
[
{
"tree1": 0,
"tree2": 0,
"results": [
{
"metric": "rf",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
},
{
"metric": "rfl",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
}
]
},
{
"tree1": 0,
"tree2": 1,
"results": [
{
"metric": "rf",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
},
{
"metric": "rfl",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
}
]
}
],
[
{
"tree1": 1,
"tree2": 0,
"results": [
{
"metric": "rf",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
},
{
"metric": "rfl",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
}
]
},
{
"tree1": 1,
"tree2": 1,
"results": [
{
"metric": "rf",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
},
{
"metric": "rfl",
"result": {
"result": 0,
"diffsT1": [],
"diffsT2": []
}
}
]
}
]
]
}
In the results we can see the information about each inserted tree, metric outcome and the difference between trees.
Rest API¶
The PhyTA Server exports a Rest API to communicate with the PhyTA client, to allow others to use only the PhyTA server or to give others the option to develop their own client.
Endpoints¶
Process Trees¶
Parses the input trees and compares them returning a matrix with the trees and the result of the metrics.
URL
/process
Method:
POSTURL Params
None
Data Params
Required:
trees=[string]- Phylogenetic trees separated by &.treeTypes=[string]- Types of the trees separated by &.metrics=[string]- Metrics to process separated by &.parser=[string]- The parser to parse the trees.All tree types, metrics and parsers are specified in the configuration file.
Success Response:
- Code: 200
Content:{"id": "59283b91b4d2413350b3ea0b"}
- Code: 200
- Error Response:
- Code: 400
Content:{"error": "Please provide at least two trees!"}
- Code: 400
Check results¶
This endpoint checks, if the results have been produced or not.If used invalid jobId an error will be sent.
URL
/checkResults/:id
Method:
GET
- URL Params
Required:
id=[number] - The id for the job.
Data Params
Node
Success Response:
- Code: 200
Content:
"_id": "59bfe8b62e846f09942e896f", "trees": [ { "id": 0, "format": "(A:0.1,B:0.2,(C:0.3,D:0.4)E:0.5)F;", "type": "rooted", "tree": { "elements": [ { "id": 0, "parent": null, "children": [ 1, 2, 3 ] }, { "id": 1, "parent": 0, "children": [] }, { "id": 2, "parent": 0, "children": [] }, { "id": 3, "parent": 0, "children": [ 4, 5 ] }, { "id": 4, "parent": 3, "children": [] }, { "id": 5, "parent": 3, "children": [] } ], "info": { "0": { "data": "F", "length": 0 }, "1": { "data": "A", "length": 0.1 }, "2": { "data": "B", "length": 0.2 }, "3": { "data": "E", "length": 0.5 }, "4": { "data": "C", "length": 0.3 }, "5": { "data": "D", "length": 0.4 } }, "clusters": { "clusters": { "length": 6, "items": { "0": [ 1, 2, 4, 5 ], "1": [ 1 ], "2": [ 2 ], "3": [ 4, 5 ], "4": [ 4 ], "5": [ 5 ] } }, "ids": [ 1, 0, 2, 4, 3, 5 ] } } }, { "id": 1, "format": "(A:0.1,B:0.2,(C:0.3,D:0.4)E:0.5)F;", "type": "rooted", "tree": { "elements": [ { "id": 6, "parent": null, "children": [ 7, 8, 9 ] }, { "id": 7, "parent": 6, "children": [] }, { "id": 8, "parent": 6, "children": [] }, { "id": 9, "parent": 6, "children": [ 10, 11 ] }, { "id": 10, "parent": 9, "children": [] }, { "id": 11, "parent": 9, "children": [] } ], "info": { "6": { "data": "F", "length": 0 }, "7": { "data": "A", "length": 0.1 }, "8": { "data": "B", "length": 0.2 }, "9": { "data": "E", "length": 0.5 }, "10": { "data": "C", "length": 0.3 }, "11": { "data": "D", "length": 0.4 } }, "clusters": { "clusters": { "length": 6, "items": { "6": [ 7, 8, 10, 11 ], "7": [ 7 ], "8": [ 8 ], "9": [ 10, 11 ], "10": [ 10 ], "11": [ 11 ] } }, "ids": [ 7, 6, 8, 10, 9, 11 ] } } } ], "results": [ [ { "tree1": 0, "tree2": 0, "results": [ { "metric": "rf", "result": { "result": 0, "diffsT1": [], "diffsT2": [] } } ] }, { "tree1": 0, "tree2": 1, "results": [ { "metric": "rf", "result": { "result": 0, "diffsT1": [], "diffsT2": [] } } ] } ], [ { "tree1": 1, "tree2": 0, "results": [ { "metric": "rf", "result": { "result": 0, "diffsT1": [], "diffsT2": [] } } ] }, { "tree1": 1, "tree2": 1, "results": [ { "metric": "rf", "result": { "result": 0, "diffsT1": [], "diffsT2": [] } } ] } ] ] }- Error Response:
- Code: 400
Content:{"error": "The id entered does not exist"}
- Code: 200
ConfigFile¶
This endpoint send json configuration about the trees and the metrics they support.
URL
/configFile
Method:
GETSuccess Response:
Code: 200
Content:"trees": [ { "id": "rooted", "description": "Rooted tree", "parser": "parseRootedTree", "accepts": [ "rf", "rfl", "trip" ] }, { "id": "unrooted", "description": "Unrooted tree", "parser": "parseUnrootedTree", "accepts": [ "rf", "rfl", "quart" ] }, { "id": "forest", "description": "Tree forest", "parser": "parseTreeForest", "accepts": [ "rf", "rfl", "quart" ] } ], "metrics": [ { "id": "robinsonFoulds", "description": "Robinson Foulds Distance", "metric": "rf" }, { "id": "robinsonFouldsLength", "description": "Robinson Foulds with Lengths", "metric": "rfl" }, { "id": "triplet", "description": "Triplets distance", "metric": "trip" }, { "id": "quartet", "description": "Quartets distance", "metric": "quart" } ], "parsers": [ { "id": "newick", "description": "newick format", "parser": "nwk" } ] }
